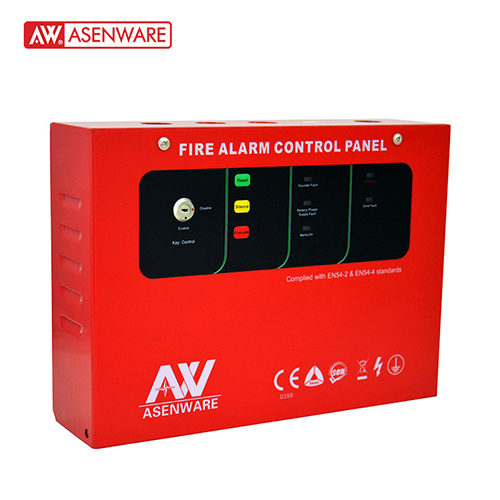

1 Zone Fire Alarm Control Panel

Analogue conventional detector inputs: 20 detectors or MCPs maximum.
Smaller size and easier for installation, but all-around.
Maximum number of bells per CIE: 4 Bells.
relay-outputs: FIRE/FAULT.
High-capacity batteries: 12V2.3Ah*2, over 8h for stand-by use.
Automatic power switchover: mains power and stand-by power.
Succinct functional buttons: friendly user interface for easy operation and recognition.
Fault supervision and notification: inputs, sounder, mains/batteries.
Evacuation: man-made fire alarm condition on panel.
Silence: sounders and panel buzzer.

Extensible application for GSM: inform user anytime by mobile telephone.

AC INPUT	220VAC 50/60Hz

DC OUTPUT	24VDC typical
Voltage for MCU	5V for MCU
Current at 24VDC from PSE	450mA standby current
Maximum current from PSE	1A except batteries charge
Batteries current	1.85A maximum, current limited
Auxiliary output	24VDC +/- 10%, 100 mA max, current limited, monitored
Batteries	212V/ 2.3Ah sealed lead acid gel, self-regulated
Battery low-voltage protection	21V
Detectors connection allowed each zone	20 (except MCPs)
Zone alarm current	6mA minimum/ 27mA maximum
Sounder output	2*0.75A maximum
Fire Relay	1A/30VDC maximum
Fault Relay	1A/30VDC maximum
Communication protocol	2 wires RS485 bus system
EOL resistor for zone	6.8K 1W
EOL resistor for outputs	6.8K 1W
Fuse for AC Power	1 A/ 250V glass tube fuse 5 X 20mm
Fuse on DC Power	1A/ 250V glass tube fuse 5 X 20mm
Environmental	Class A temperature range: -5 to 50°C Humidity: 5 to 95% RH, non-condensing
Terminal blocks rating	All terminals rated for 12 to18 AWG (0.75 to 2.5 mm2)
