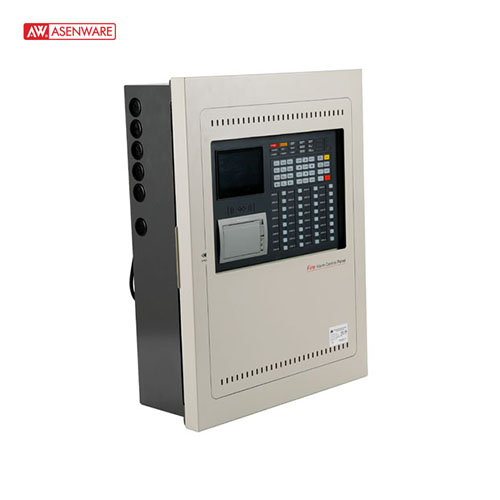

32 Zone Addressable Fire Alarm Control Panel

32 Zone Addressable Fire Alarm Control Panel Features

Up to 324 addresses on one loop
An easy to read, 4.3'' color screen LCD with a resolution of 480×272
Zone indication and control panel(ZCP) for 32 zones gives a quick indication of the location of an alarm
Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation
An independently programmable conventional sounder circuit output
Integral power supply and battery
Integral printer
Flexible cause and effect programming on front panel
Zone test, point test and module start/stop testing facilitate the commissioning
U-disk interface makes the load and save of configuration or historical data convenient for system commissioning and maintenance
Hierarchy management with three access levels
Anti-tamper protection by a key lock

CAN bus for interconnection of up to 20 FACPs and RS485 for connection with up to 30 fire indicating panels per FACP

Technical parameters

Power supply
Mains supply		230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A
Mains fuse		T3.15AL250V
Operating voltage		18.5 ~ 30VDC
Recommended mains cable		Screened or standard/black mains cable, cable size 0.75mm2
Power rating		Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A
Max. charging current		1.2A
Max. battery supply current		4A (when the Mains is disconnected)
Battery capacity, type and recommended model		Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic)
Max. internal resistance of battery		1.5Ω
Battery fuse		F8AL250V
Recommended battery cable		14AWG
Quiescent current (full loaded)		< 0.4A
Outputs
S.C. Out (+, -)	Output voltage	18.5 ~ 30VDC
	Max. output current	0.5A
	Fuse rating	F1AL250V
	End of line resistor	4K7
	Recommended type of cable	Plain unscreened cable, 1.5mm2
	Cable diameter	1mm2 ~ 2mm2
	Transmission distance	≤1500m
	Max. number of sounders @50mA	20
F.P.E. Out (+, -) F.A. Out (+, -)	Output voltage	18.5 ~ 30VDC
	Max. output current	0.5A
	Fuse rating	F1AL250V
	End of line resistor	4K7
	Recommended type of cable	Plain unscreened cable, 1.5mm2
	Cable diameter	1mm2 ~ 2mm2
	Transmission distance	≤1500m
Fault Out (NC, COM, NO)	Contact capacity	30VDC@2A, 125VAC@0.5A
	Recommended type of cable	Plain unscreened cable, 1.5mm2
	Cable diameter	1mm2 ~ 2mm2
24VK (+, -)	Output voltage	18.5 ~ 30VDC
	Max. output current	0.6A
	Fuse rating	F1AL250V
	Recommended type of cable	Plain unscreened cable, 1.5mm2
	Cable diameter	1mm2 ~ 2mm2
Input
Class change (+, -)	Input mode	Passive
	Cable resistance	≤500Ω
	Recommended type of cable	Plain unscreened cable, 1.5mm2
	Cable diameter	1mm2 ~ 2mm2
Loop
Loop Out (+, -) Loop In (+, -)	Output voltage	16.5 ~ 30VDC, pulse
	Output current	0 ~ 0.3A
	Loop type	Class A
	Recommended type of cable	Screened or unscreened twisted-pair, 1.5mm2
	Transmission distance	≤1000m
	Cable diameter	1mm2 ~ 2mm2
Network communication
RS-485	Max. number of FIPs	30
	Transmission rate	9600 bps
	Recommended type of cable	Screened or unscreened twisted-pair, 1mm2
	Transmission distance	≤1000m
	Cable diameter	1mm2 ~ 5mm2
CAN	Max. number of panels	20
	Transmission rate	Optional: 10K, 20K, 50K and 100K bps
	Recommended type of cable	Screened or unscreened twisted-pair, 1mm2
	Transmission distance	≤1000m
	Cable diameter	1mm2 ~ 5mm2
Physical dimensions
Approx. Dimensions of the panel (W×H×D)		430×560×170mm
Approx. weight (without battery)		14kg
Operating conditions
Temperature range:-5℃~50℃. Max relative humidity: 95%
