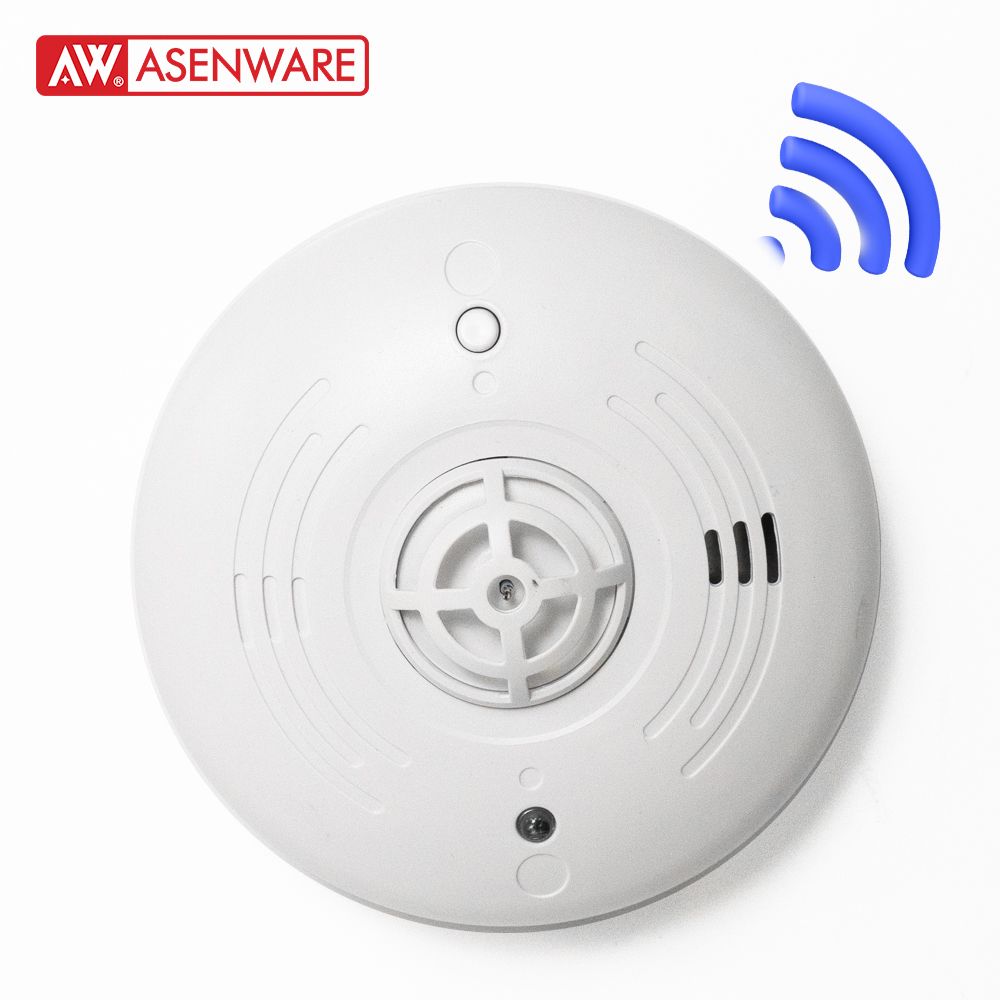

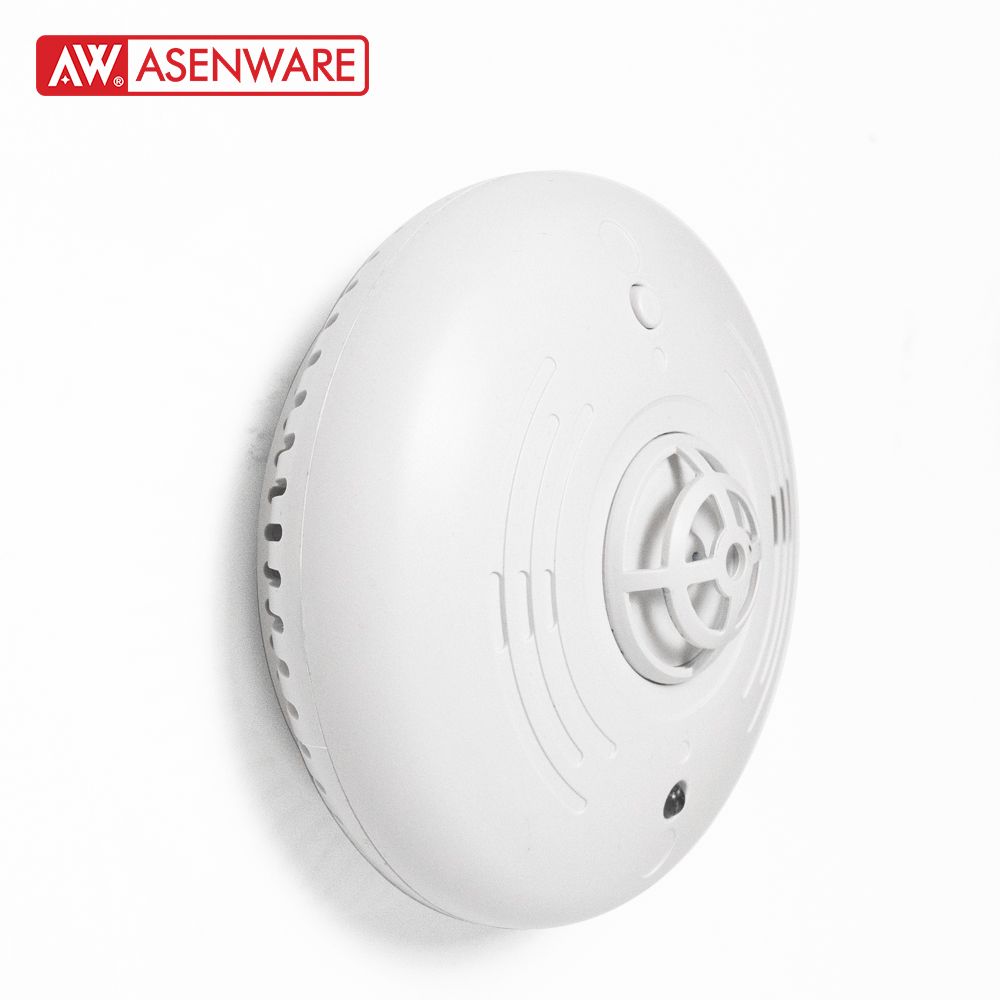

Wireless Addressable Heat Detector

2.Product Features

2.1 Easy to install, mounting bracket included

2.2 High quality durable sensor

2.3 Loud 85dB alarm and LED warning indicator

2.4 Excellent reliability and high stability

2.5 Suitable for all families and other places where needs

2.6 The battery is used for ten years, and it does not need to be replaced for ten years of normal operation.

2.7 Meets all requirements of latest EN standard Technical parameters

3. Technical Parameters

Operating Voltage	3VDC (with battery CR17450 / CR17455)
Operating current	monitoring status≤8uA, alarm status≤120mA
Operating Frequency	433MHz (418MHz to 448MHz)
Fix temperature Alarm:	57°C (135°F) A2R
Rate of rise Alarm：	≥10°C/2M A2R
Wireless transmit power	+20dB
Alarm level	≥85dB /3m
Protection class	IP30
Indicator	Normal: blinking Alarm: lighting
Environmental	Temperature range: 0 to 40°C (32~104°F) Humidity: ≤93% RH, non-condensing
Materials and colors	ABS, white
Mating Host	AW-FP100 addressable fire alarm control panel
Encoding	Address from 1 to 250 optional
Size	105mm* 105mm* 50.2mm (with cover)
Weight	About 120g

4. Mounting base

AW-D604L should comply with all local codes. Shown in Figure 2, install the base of the AW-D604L on the wall. And then insert the main body into the base.

The base dimensions of 105mm*105mm*41mm(Length*Width*Height),mounting hole diameter φ2mm, fixing the hole spacing is 42mm, shown in Figure 3.

5. Operation

Test: When there is no fire alarm, you can press the test button to test. When pressed, both the buzzer and

LED light work intermittently (beep and LED blink)

Mute: when the detector is in the alarm state, press the button on the cover to mute the buzzer, the silence

period for each press is 5 minutes, and the longest does not exceed 15 minutes; if there is still a fire

alarm at the end of each silence period The alarm will be retriggered. Normal work: LED flashes once every 50 seconds and battery power are detected once, smoke density is

detected once every 4 seconds, and the buzzer does not sound. Low battery/failure: LED flashes once every 50 seconds, buzzer beeps once.
