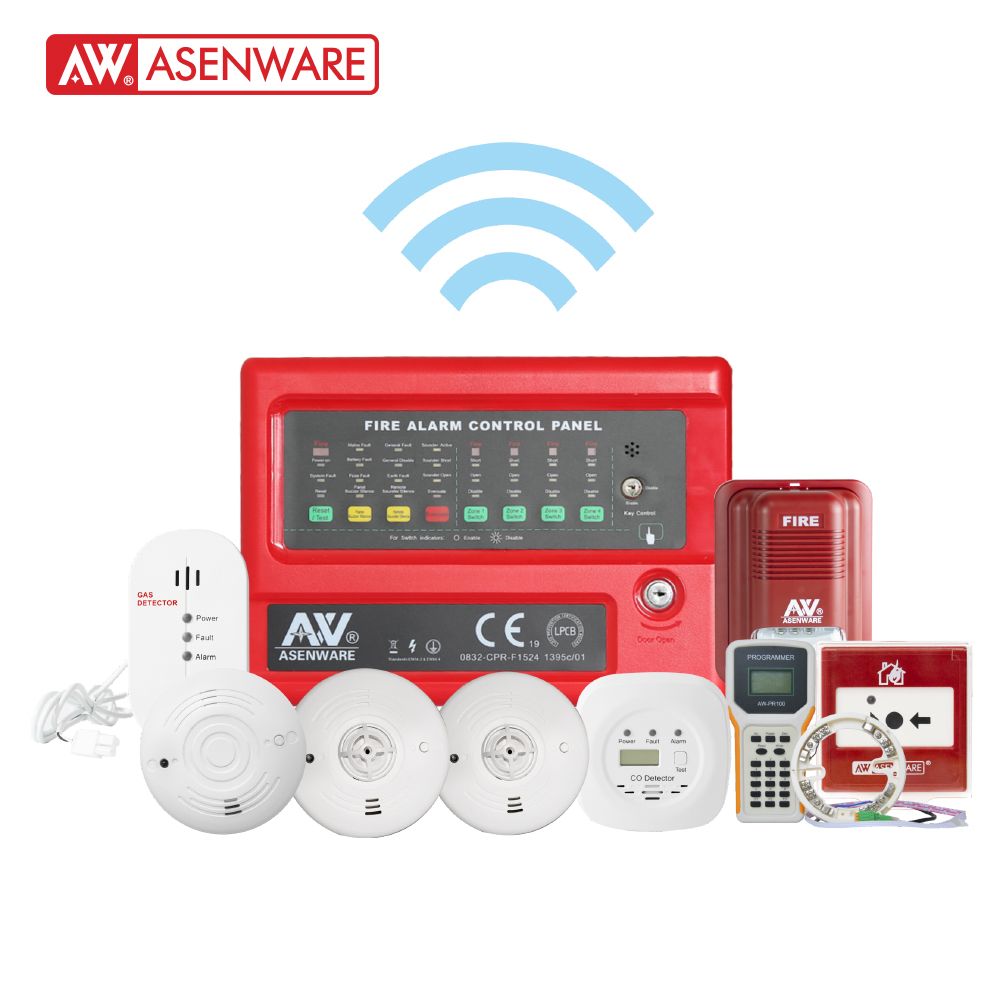

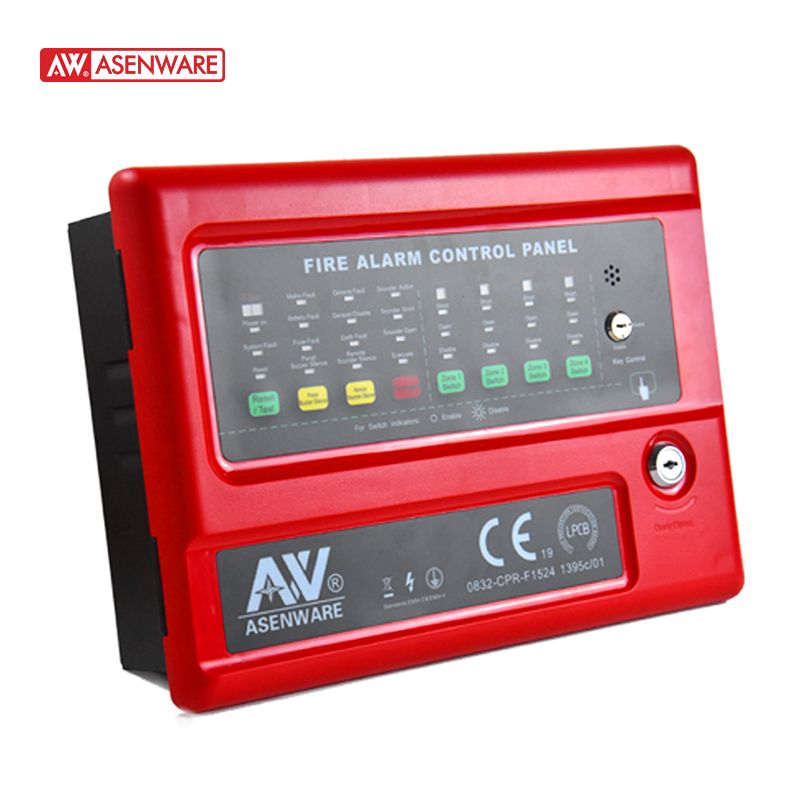

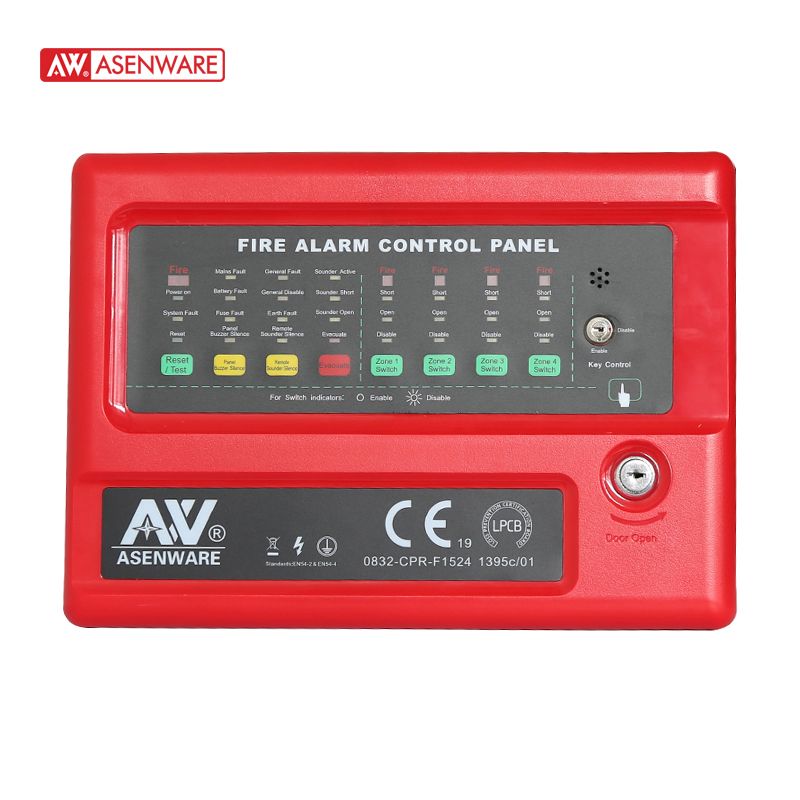

Wireless Conventional Panel 4 zone,Wireless Fire Alarm System

Home > Products > Wireless

Description

The fire alarm control panel is housed in the most attractive, modern designed, friendly user interface for easy operation and recognition. It has smaller size and easier for installation.The panel can also be ordered with a metal box.

Features

1. Automatic power switchover

2. 24V2.3Ah High-capacity batteries

3. Fault supervision and notification

4. 2 relay output circuits

5. Sounders and panel buzzer silence

6. Loop for wireless devices

7. Meets all requirements of latest EN54 part 2 and EN54 part 4

Technical Specification

Model	AW-CFP2166-4W
Main Voltage	220VAC 50HZ/60HZ
Batteries	2*12V/ 2.3Ah sealed lead acid gel, self-regulated
Detectors connection allowed each zone	20 detectors (except MCPs)
Zone alarm current	6mA minimum/ 27mA maximum
Sounder output	0.2A maximum
Relay contacts rating	1A @30VDC
